Explosion Suppression Protection

Performance Features

  • Low Mass/Low Pressure - Compact
  • On Site Refurbishment - no Hardware Exchange*
  • Suppressant Energized- Full Discharge
  • Installs at Any Angle - Flexibility
  • Exempt from Use & Storage Licensing
  • System Continuously Monitored
  • Simple Routine Maintenance- by User
  • Clean lnstallation- Flush Mounted
* in typical service conditions

Request a Quote


  • Description
  • Applications/Service
  • Documentation

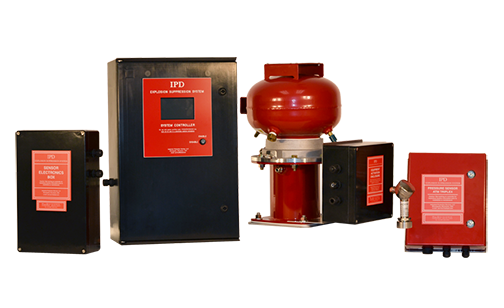

The BS&B Type IPD Explosion Suppression System provides protection of process enclosures where dust suspended in air represents an explosion hazard. The early stages of the pressure rise associated with a dust explosion are detected by the Unitized Sensor which is mounted to the equipment to be protected.

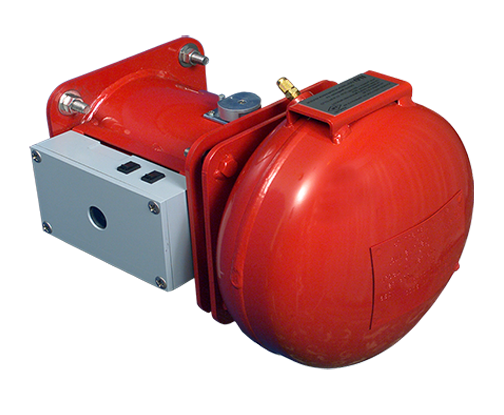

When at least two of three individual pressure sensors within the Unitized Sensor respond, an electrical signal activates the Explosion Suppression Cannon(s) installed on the equipment causing the pulverized suppression agent (food compatible sodium bicarbonate) to be energized & discharged from the front of the Cannon into the equipment. This extinguishes the early stages of combustion of the process material before it builds into a deflagration which can generate a pressure spike exceeding the strength of the process equipment.

Explosion Suppression System


BS&B Type IPD Explosion Suppression Systems are continuously protecting common industrial process equipment including:
  • Dust Collectors
  • Dryers
  • Blenders
  • Grinders
  • Silos
Industries using BS&B Type IPD equipment include:
  • Food Processing
  • Grain and Feeds
  • Pharmaceutical
  • Chemical
  • Wood


The IPD service team is available 24/7 to support new system installation, on-site refurbishment of activated suppression systems and to conduct the periodic audits required by NFPA 69.
