Performance Features

  • Unique, economic, and patented design.
  • Accurate reliable and leak tight.
  • Enhanced abrasion resistance.
  • One-piece metal construction without slits on the process side avoiding product accumulation.
  • Optional design for aseptic/sanitary applications.
  • No fragile PTFE seal that may puncture and admit moisture.
  • Superior dynamic performance due to low mass compared with composite designs.
  • Operating pressures up to 60% of the minimum tagged pressure rating (80% under certain conditions).
  • Thermal insulation available to permit use in operating temperatures to 2000°F/1093°C, to reduce heat loss or prevent condensation.
  • Supplied with integral gaskets ready for installation.
  • Fail-safe design, if damaged it will provide a relief opening below its rated pressure

Request a Quote



  • Types
  • Rectangular/Square Sizes
  • Round Sizes
  • Documentation

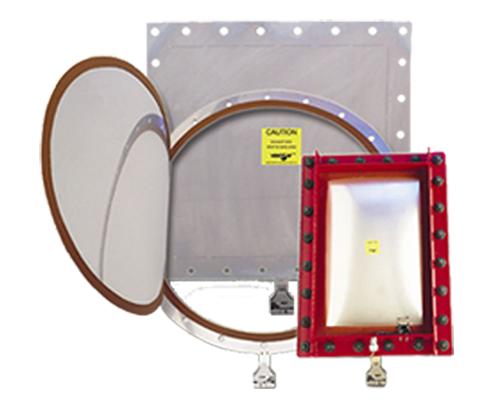

Vent-Saf Explosion Vents

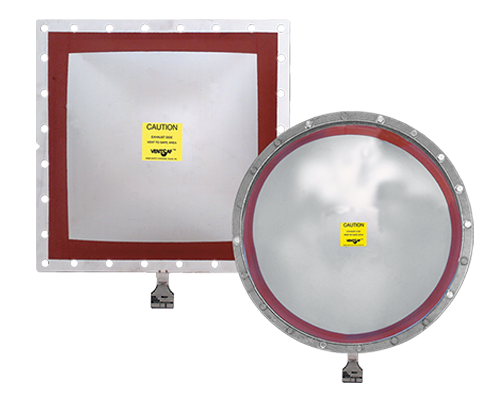

Types VSP™ Explosion Vents
Types VSP™ and VSS™

Domed single section metal explosion vents with integral gaskets. The dome resists vacuum and vacuum cycling.

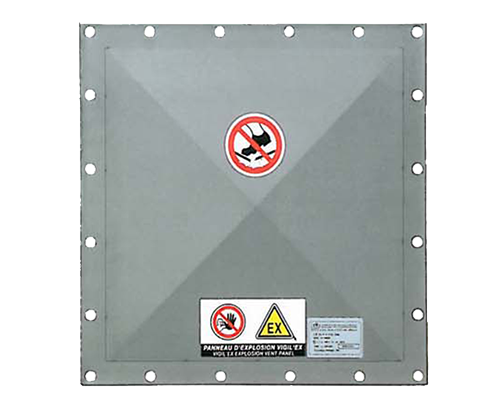

Types VSM™ Explosion Vents
Type VSM™

A flat, single section explosion panel with integragal frame and gaskets designed for applications in dust collectors, cyclones, conveyors.

Types VSP-L™ Explosion Vents
Type VSP-L

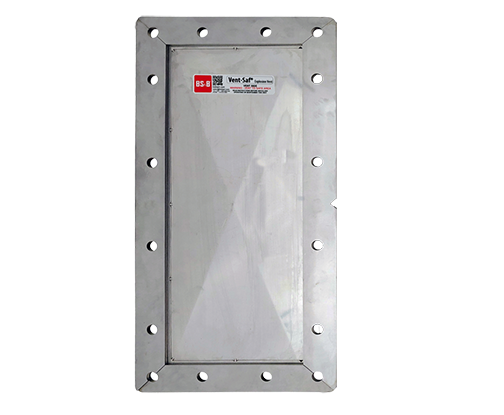

Stainless steel vent designed for low pressures to 0.33 psig (0.022 barg)

Type VSE™ Explosion Vents
Type VSE™

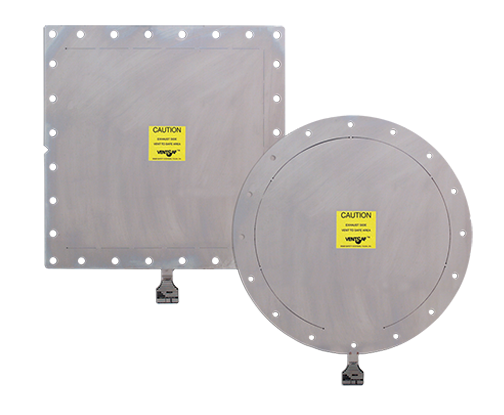

A flat, single section metal explosion vent with integral gaskets designed for near static operating pressures.

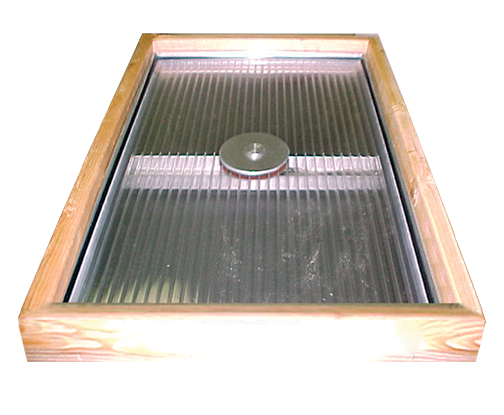

Type VSB™ Explosion Vents
Type VSB™

Building vent for protection of building structures by very low pressure explosion vents.

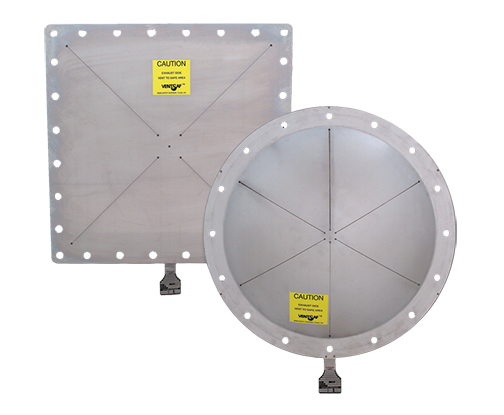

Type EXP™ Explosion Vents
Type EXP™

A flat vent with a slotted 316ss top section and FEP / PTFE seal.

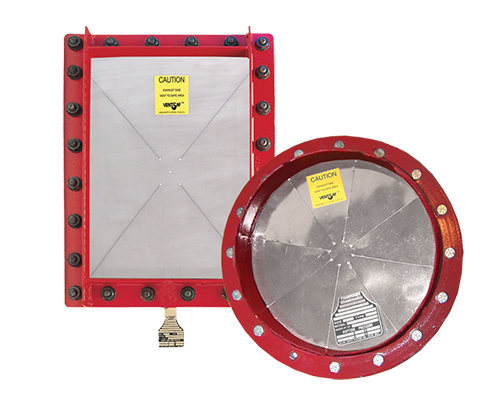

Type EXP-V™ Explosion Vents
Type EXP-V™

A flat vent with a slotted 316ss top section and FEP / PTFE seal that provides vacuum support

Type EXP-DV™ Explosion Vents
Type EXP-DV™

A round domed explosion vent of composite construction with integral vacuum support and gaskets.

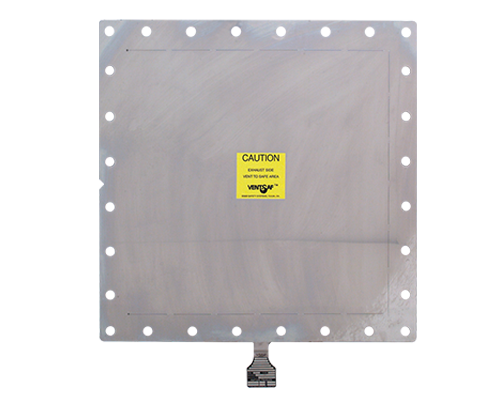

Type LCV™ Explosion Vents
Type LCV™

A flat explosion vent of composite construction with integral gaskets.

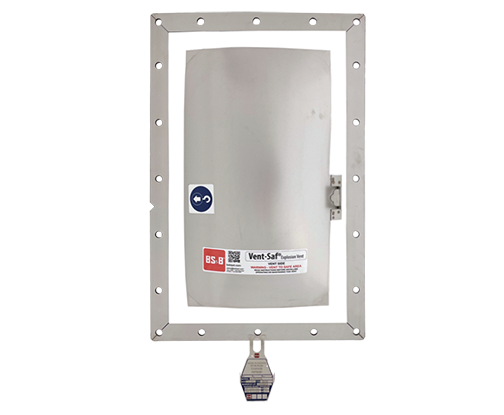

Type HTV™ Explosion Vents
Type HTV™

A lightly domed vent designed for high temperature service to 1,000°F (538°C) and above.

Current Certifications

  • High operating ratio up to 100% (CE) / 95% (ASME)
  • Full vacuum resistance
  • Solid metal construction enabling optimum leak tightness
  • Designed for non-fragmentation
  • Recommended for isolation of pressure relief valves
  • Three-dimensional stainless steel tag with product identification and traceability data, as well as code symbol stamps as required

Rectangular/Square Panel Dimensions

Nominal Size Frame Inside Frame Outside Area
in mm in mm in mm in2 cm2
9 x 12 230 x 305 9 x 12 230 x 305 13 x 16 330 x 406 98 630
12 x 18 305 x 457 12 x 18 305 x 457 13 x 16 406 x 559 201 1298
18 x 18 457 x 457 18 x 18 457 x 457 22 x 22 559 x 559 306 1976
18 x 24 457 x 610 18 x 24 457 x 610 22 x 28 559 x 711 411 2653
18 x 30 457 x 762 18 x 30 457 x 762 22 x 34 559 x 864 516 3330
18 x 36 457 x 915 18 x 36 457 x 915 22 x 40 559 x 1016 621 4008
18 x 46.5 457 x 1181 18 x 46.5 457 x 1181 22 x 50.5 559 x 1283 789 5091
19 x 59 483 x 1499 19 x 59 483 x 1499 23 x 63 584 x 1600 1082 6982
24 x 24 610 x 610 24 x 24 610 x 610 28 x 28 711 x 711 552 3562
24 x 30 610 x 762 24 x 30 610 x 762 28 x 34 711 x 864 693 4473
24 x 36 610 x 915 24 x 36 610 x 915 28 x 40 711 x 1016 834 5382
Note: Other vent or panel sizes, materials and burst pressures are available upon request - consult BS&B.
