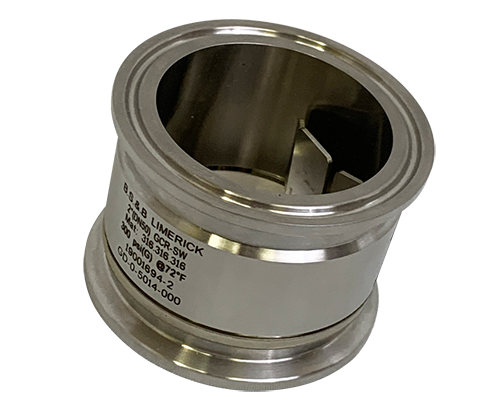

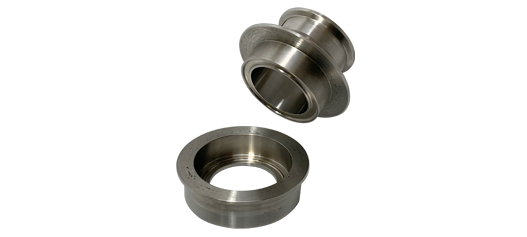

GCR-SW™ Welded Sanitary Reverse Rupture Disk

Welded Medium Pressure Rupture Disk Assembly

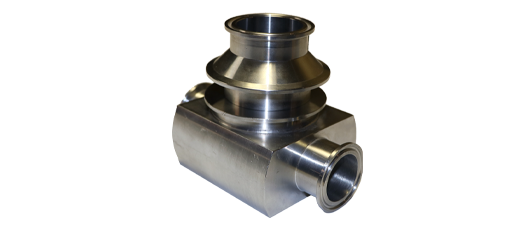

GCR-SW™ Welded Sanitary Reverse Rupture Disk

Performance Features

  • Designed for gas, liquid, and multi-phase service.
  • Ideal for CIP / SIP Service.
  • Standard wetted surface finish is ≤ 15 micro inch [≤ 0.38 micro meter]. Optional electropolished finish.
  • Suitable for operating pressure up to 95% of the minimum burst pressure.
  • Designed for non-fragmentation, protective of downstream devices including safety relief valves.
  • Damage safety ratio ≤ 1.
  • Suitable for cycling service.
  • Vacuum resistant.
  • Available with ASME “UD” certification, and Pressure Equipment Directive “CE” marking and other international certifications.
  • Available for use with downstream mounted type SAS or KBA-S Burst Alert® sensors.

Request a Quote



  • Sizes & Pressures
  • Burst Tolerance
  • Safety Heads & Sensors
  • Accessories
  • Documentation

Sizes & Pressures

GCR-SW™ Disk Specifications Minimum/Maximum Pressure with Rating at 72° (22°C)

Disk Size Overall Height Distance to Disk Location
in mm in mm in mm
1.5 40 1.77 45 0.394 10
2 50 2.14 54.5 0.394 10
3 80 2.97 75.4 0.591 15
4 100 4.65 118.2 0.591 15
Note: Other burst pressures may be available - consult BS&B.

Sanitary Fitting Specifications

ASME BPE and DIN 32676 Series C are the leading standards for sanitary fittings to which GCR-SW rupture disk assemblies are installed. Alternative GCR-SW options are available upon request to support installation to DIN 32676 Series A and Series B fittings. Please identify the required fitting standard at time of inquiry and order.

Burst Tolerance

Marked Burst Pressure Burst Tolerance
≤ 40 psig (2.76 barg) ± 2 psig (0.138 barg)
> 40 psig (2.76 barg) ± 5%

Accessories

BS&B supplies many of the Accessories required to safely and conveniently install our overpressure relief devices and complementary products. Through our professional team and global network of sales engineers and procurement personnel, we are able to provide the highest quality accessory products to meet your installation requirements.

Saf-T-Change Quick Disk Replacement (QDR)
Saf-T-Change Quick Disk Replacement (QDR)

After activation, the replacement disk is quickly slid into place. Saving hours of lost production due to blown rupture disks.

Tell-Tale Assemblies
Tell-Tale Assemblies & Excess Flow Valves/Gauges

A gauge tap in the outlet flange of the safety head may be considered when the safety head is installed in a vertical position.

Spare Safety Heads & Cap Screws
Spare Safety Heads & Cap Screws

Jackscrews
Jackscrews

When activated, the jackscrews effectively separate the flanges, providing adequate clearance to remove or insert a safety head and external gaskets.

Lifting Lug Eye Bolts
Lifting Lug Eye Bolts

Eye bolts are recommended when weight and/or accessibility is a factor in lifting safety heads.

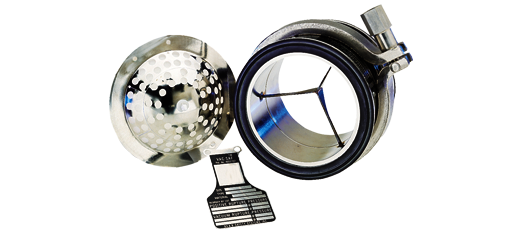

Baffle Plate
Baffle Plate

When a safety head is free-vented to atmosphere, a baffle plate may be considered to disperse overpressure and absorb recoil.

Product Literature

GCR-SW™ Rupture Disk Brochure
Bio-Saf Series Rupture Disk Brochure
Burst Alert Sensors Brochure
Detec Saf Alarm System Brochure

Installations

Sanitary Alert Sensor Installation Instructions
Burst Alert Sensor Installation Instruction
Burst Alert Leak Dectector Installation Instruction

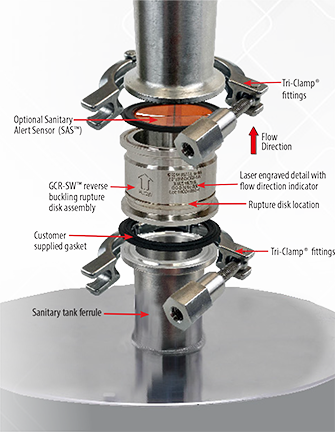

GCR-SW Advantages

  • Simple: Leak tight, welded, single piece assembly.
  • Protective Design: Disk fully contained inside the assembly, protecting it from damage during installation and handling.
  • Versatile: Ideal for horizontal, vertical, and oblique installation where standard sanitary disks with separate fittings are difficult to remove and install.
  • Long shelf life: No elastomer gaskets present in the assembly.
  • Robust: Single piece assembly design significantly isolates the rupture disk from misaligned or unsupported piping.
  • Torque Resistant: Single piece assembly design significantly isolates the rupture disk from the effects of excessive torque.
  • Reusable: Typically, GCR-SW assemblies can be removed from service, carefully cleaned, and reinstalled.
  • CIP/SIP Advantage: Benefiting from the single piece assembly design, there are no elastomer components to degrade in the assembly.
  • Less Inventory: Common burst pressure requirements can be supported with one inventory item [no integral gasket.
