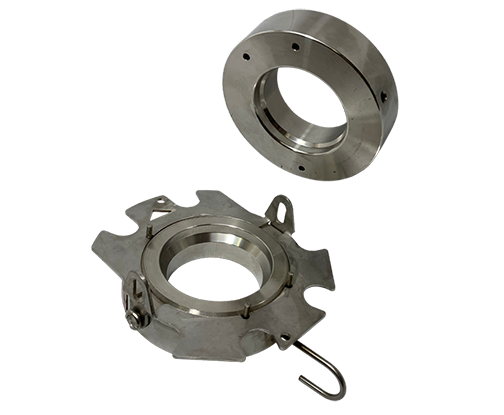

SR-7R™ Safety Heads (Holders)

Performance Features

  • Insert type safety head that fits inside the bolt circle of companion flanges to allow for easy installation and removal
  • Pre-Assembled cost-effective solution
  • A J-bolt ensures the safety head is fitted in the required direction between companion flanges by engaging a blind hole drilled on the inlet companion flange perimeter
  • Asymmetric alignment pins in the safety head mate with locating holes in the rupture disk, ensuring centering and correct orientation of the rupture disk within the safety head
  • Flow arrows on the side of the safety head indicate correct directional installation with process flow
  • Proprietary ‘bite seal’ on flat seating surface to optimize sealing between rupture disk and safety head process side allowing leak tightness of 10^-6cc/s He or greater
  • Can be equipped with pressure tapping in either inlet or outlet to allow installation of monitoring devices and sensors
  • For use with flanged piping connections; Raised face, Ring joint and tongue and groove flange facings. Designed for multi flange ratings and piping standards
  • The rupture disk dome fully protected within safety head inlet to avoid damage when installed into piping system
  • Available in Torque resistant version, specify SR-7R-TR

Request a Quote

  • Sizes & Pressures
  • Disks & Sensors
  • Materials & Option
  • Accessories
  • Documentation

Sizes & Pressures

Disk Size Safety Head Flange Rating Face-to-Face Dimensions
in mm ANSI DIN JIS in mm
1 25 150 10/16 10/16 1.25 31.75
1 25 300/600 25/40 20/30/40 1.25 31.75
1 25 900/1500 * * 1.75 31.75
1.5 40 150 10/16 10/16 1.25 31.75
1.5 40 300/600 25/40 20/30/40 1.25 31.75
1.5 40 900/1500 * * 1.44 36.58
2 50 150 10/16 10/16 1.25 31.75
2 50 300/600 25/40 20/30/40 1.25 31.75
2 50 900/1500 * * 1.625 41.15
3 80 150 10/16 10/16 1.41 34.95
3 80 300/600 25/40 20/30/40 1.5 38.1
3 80 900 * * 1.75 44.45
4 100 150 10/16 10/16 1.72 43.66
4 100 300 25/40 20/30/40 1.72 43.66
4 100 600 * * 1.72 43.66
6 150 150 10/16 10/16 2.5 63.5
6 150 300 25/40 20/30/40 2.5 63.5
6 150 600 * * 3.125 79.37

Disk Size Safety Head Flange Rating Face-to-Face Dimensions
in mm ANSI DIN JIS in mm
8 200 150 * * 3.375 85.73
8 200 300 * * 3.375 85.73
10 250 150 * * 6.0 152.4
10 250 300 * * 6.0 152.4
12 300 150 * * 4.56 144.48
12 300 300 * * 5.5 139.7
14 350 150 * * 5.625 142.88
14 350 300 * * 5.625 142.88
16 400 150 * * 6.375 161.93
16 400 300 * * 7.125 180.98
18 450 150 * * 7.5 190.5
18 450 300 * * 7.5 190.5
20 500 150 * * 6.25 158.75
20 500 300 * * 8.625 219.08
24 600 150 * * 7 177.8
24 600 300 * * 7.75 196.85
30* 750 150 * * 12 304.8
36* 900 300 * * 15 381
*Applicable to ASME Series A
Contact BS&B for other sizes, ratings, or face-to-face dimensions.

Standard Materials

316 stainless steel and carbon steel.

Also available Monel® alloy 400, Inconel® alloy 600, Hastelloy® alloy C and C-276, aluminum, and titanium.
