Spark Detection & Extinguishing Solutions Protection

Performance Features

  • Spark Detection, Flame Detection and Hot Particle Detection
  • Extinguish Without Stopping Production.
  • Prevent Fire and Explosion Risks in Downstream Equipment
  • Activate Alarm and Control Systems
  • A Flexible Modular Design Allows for up-to-34 systems to be monitored through modular expansion
  • Wide-range of operating temperatures from 158°F to 392°F (70°C to 200°C)
  • Battery pack included for backup power in the event of an electrical outage
  • Trace Heating Available for Water Extinguishing in Extremely Cold Conditions

Request a Quote



  • Description
  • Applications/Components
  • Documentation

Reduce Fire and Explosion Risk

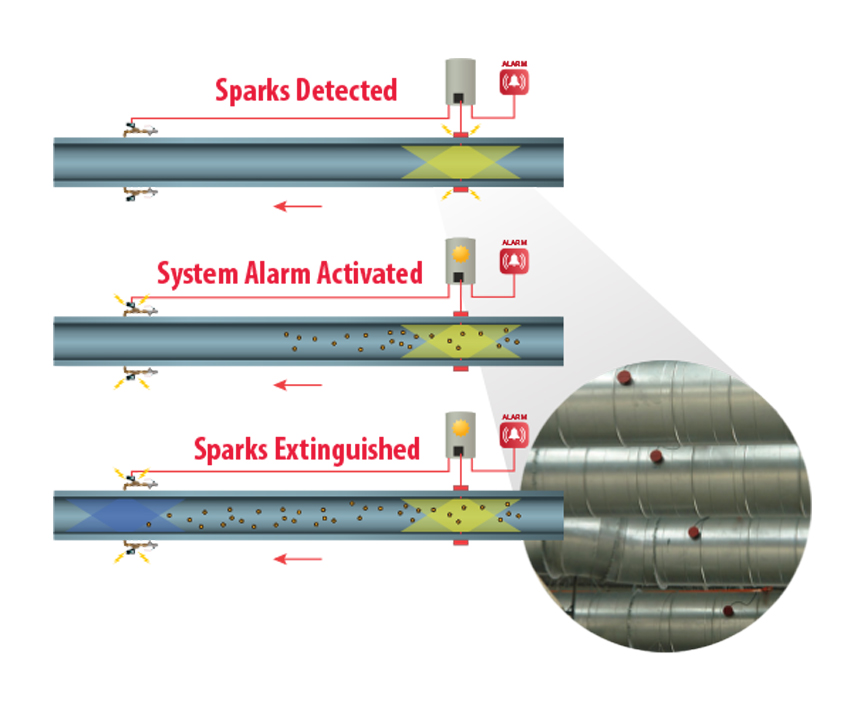

Using infrared detectors, the BS&B SparkEx System searches for elevated temperature particles. The greatest sensitivity occurs when detectors are employed in a dark area, which is easily achieved in closed ductwork. Optional ‘daylight detectors’ are available.

Upon detection, the BS&B SparkEx System provides many options to manage the ignition risk:

  1. Activate water spray curtain placed downstream of the detection point.
  2. Activate automated shut-down of the process to end the feed of combustible material.
  3. Provide activation signal for other control devices such as diverter valves.

The BS&B SparkEx System operates in a continuous automatic mode with all of its functional circuits supervised to maintain the highest degree of system reliability for continuous operation.

Applications

BS&B Type IPD Explosion Suppression Systems are continuously protecting common industrial process equipment including:
  • Agriculture
  • Food
  • Wood
  • Textiles
  • Metal
  • Chemicals
  • Plastics
  • Power Plants
  • Rubber
  • Recycling

Components

  • Control Panel (Optional)

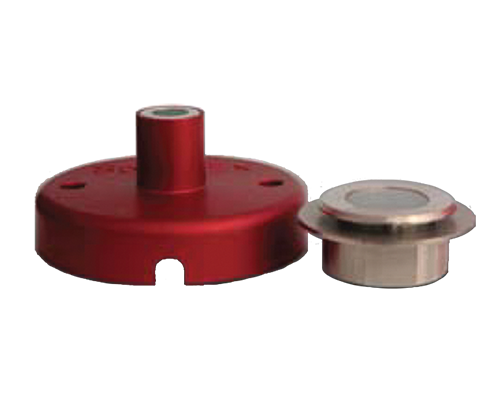

  • Spark Indicator SDN
  • Booster System (Optional)
  • Automatic Extinguishing Module
  • Control Unit, Type DC 1
