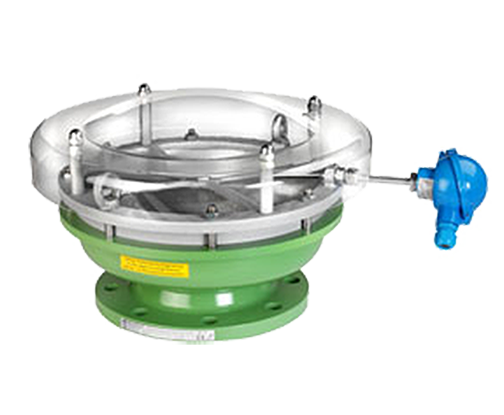

Model 934-BP-T End-of-Line Flame Arrester

Performance Features

  • End-of-Line Deflagration Flame Arrester
  • Short time burning options available
  • EC prototype test certificate according to ATEX Directive 2014/34/EU and EN ISO 16852:2016
  • Available in nom. Diameter: DN25 (1”) – DN400 (16”)

Request a Quote

  • Specification Options
  • Materials
  • Documentation

Protection

  • Gas/air mixtures for explosion groups up to and including IIC (NEC Group B), MESG < 0.50mm
  • Temperature Sensor – resistance thermometer with protection type
    • Inherently safe (EEx i)
    • Pressure Resistant Enclosure (EEx d)

Connection Type

  • ISO 7005 PN10
  • ANSI B16.5 – 150 RF
  • Rp to ISO 7-1 (DIN 2999)

Compliance with Guidelines

  • ATEX 2014/34/EU
  • EN ISO 16852:2016

Materials of Construction

  Carbon Steel Stainless Steel Hastelloy Plexiglass Other Materials on request
Metal Foil Element
Housing of Metal Foil Element
Body / Cover
Hood

Painting Options Available

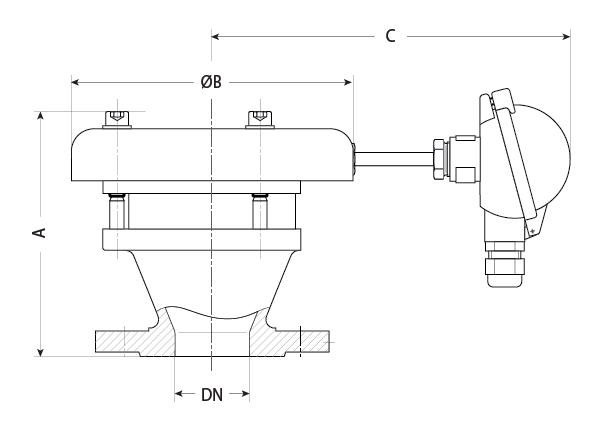

Dimensions

DN Flange version Thread version
DIN PN10 ANSI150 RF Rp, BSP, NP TF
A* B Weight** A* B Weight** B C SW
N=1 N=2 N=1 N=2 N=1 N=2 N=1 N=2 N=1 N=2
in mm in mm in mm in mm kg kg in mm in mm in mm kg kg in mm in mm in mm in mm
1 25
1.25 32
1.5 40
2 50
2.5 65
3 80
4 100
5 125
6 150
8 200
