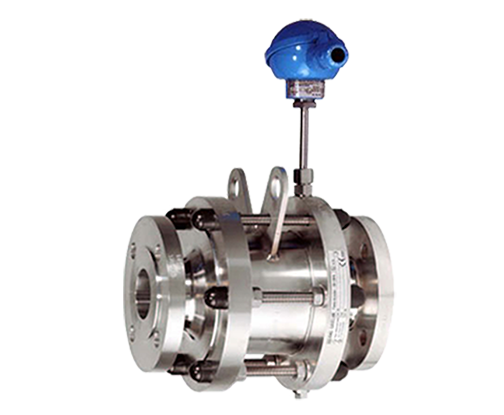

Model 933-S Inline Flame Arrester

Performance Features

  • In-line deflagration arrester / inline detonation arrester
  • Stable / Unstable detonation
  • Short time burning
  • Low pressure drop
  • Various options available for high operating pressure and temperature
  • EC prototype test certificate according to ATEX Directive 2014/34/EU and EN ISO 16852:2016
  • Available in nom. Diameter: DN50 (2”) – DN600 (24”)
  • Additional sizes available on request

Request a Quote

  • Specification Options
  • Materials
  • Documentation

Protection

  • Gas/air or vapour / air-mixtures for explosion groups up to and including IIC (NEC Group B), MESG < 0.5mm
  • Temperature Sensor – resistance thermometer with protection type
    • Inherently safe (EEx i)
    • Pressure Resistant Enclosure (EEx d)

Connection Type

  • ISO 7005-1
  • ASME B16.5
  • ANSI B16.5
  • Other types available upon request

Compliance with Guidelines

  • ATEX 2014/34/EU
  • EN ISO 16852:2016


Materials of Construction

  Carbon Steel Stainless Steel Hastelloy Ductile Iron Other Materials on request
Metal Foil Element
Housing of Metal Foil Element
Body / Cover

Painting Options Available

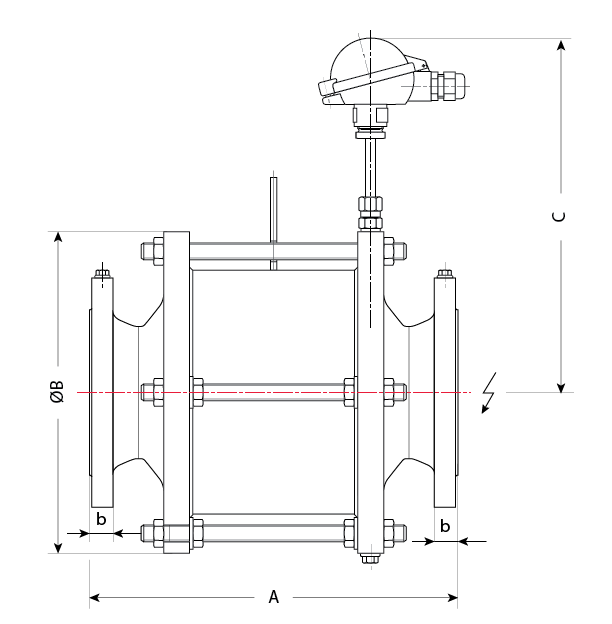

Dimensions

DN A* ØB C b Weight
N=2 N=3 N=4 N=5 N=6 N=7 N=8 N=2 N=3 N=4 N=5 N=6 N=7 N=8
in mm in mm in mm in mm in mm in mm in mm in mm in mm in mm in mm kg kg kg kg kg kg kg
1.5 40 215 227 239 252 264 276 288 206 290 18 19 21 22 24 26  28 30
2 50 235 248 260 272 284 296 309 226 300 19 22 22 25 27 29 31 33
2.5 65 240 252 265 277 289 301 313 272 320 20 34 34 38 40 43 45 47
3 80   265   277   289   302   314   326   338   308   340   22 42 45 47 50 52 55 57
4 100   280   292   304   317   329   341   353   368   370   24 56 61 66 71 76 80 84
5 125   288   300   312   324   336   349   361   308   340   20.5 43 44 46 49 51 53 55
6 150
8 200
10 250
12 300
14 350
16 400

* N: number of metal foil elements
