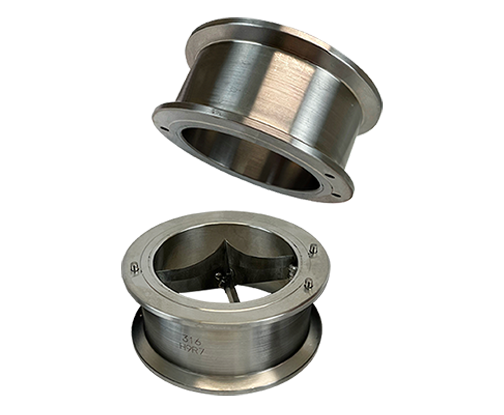

KB-C™ and PKB-C™ Safety Heads (Holders)

Performance Features

  • Asymmetric alignment pins in the safety head mate with locating holes in the rupture disk, ensuring centering and correct orientation of the rupture disk within the safety head
  • Flow arrows on the side of the safety head indicate correct directional installation with process flow
  • For use with sanitary tri-clamp piping connections
  • The rupture disk dome fully protected within safety head inlet to avoid damage when installed into piping system
  • Disk activation achieved by knife blade technology
  • Surface finish can be specified to required standards

Request a Quote

  • Sizes & Pressures
  • Disks & Sensors
  • Materials & Option
  • Accessories
  • Documentation

Sizes & Pressures

KB-C Safety Head (Holder) Dimensions
Disk Size Clamp Connection Size/Tube O.D. Face-to-Face Dimensions
Mid-Clamp End Connections KB-C
in mm in mm in mm in mm
50 3 80 2 50 3 80
3 80 3 80 3.5 90
3 80 4 100 3 80 5 130
4 100 4 100 5 130
4 100 6 150 4 100 4 100
6 150 6 150 4 100
6 150 8 200 6 150 5.5 140
8 200 8 200 4 100
8 200 10 250 8 200 7 180
10 250 10 250 4.5 115
10 250 Contact BS&B for dimensions
12 300
Available with other pressure/temperature combinations. Contact BS&B.

Rupture Disks

Sensors

Standard Materials

316 stainless steel and carbon steel.

Also available Monel® alloy 400, Inconel® alloy 600, Hastelloy® alloy C and C-276, aluminum, and titanium.

Torque Resistant Safety Head Option

The Type TR™ Series torque resistant safety head option offers the identical performance and flow characteristics valued from standard BS&B safety heads. The only difference – the TR Series Safety Heads are designed with a wider seating surface to be used with metal spiral wound gaskets at the flange. This distinct safety feature protects rupture disks from situations where plant personnel may overtorque rupture disks within piping systems.

Because of the wider seating surface of the TR Series Safety Head, the load is distributed over a much broader area reducing the influence of excessive torque transmitted to the disk.

Accessories

BS&B supplies many of the Accessories required to safely and conveniently install our overpressure relief devices and complementary products. Through our professional team and global network of sales engineers and procurement personnel, we are able to provide the highest quality accessory products to meet your installation requirements.

Saf-T-Change Quick Disk Replacement (QDR)

After activation, the replacement disk is quickly slid into place. Saving hours of lost production due to blown rupture disks.

Tell-Tale Assemblies & Excess Flow Valves/Gauges

A gauge tap in the outlet flange of the safety head may be considered when the safety head is installed in a vertical position.

Spare Safety Heads & Cap Screws

Jackscrews

When activated, the jackscrews effectively separate the flanges, providing adequate clearance to remove or insert a safety head and external gaskets.

Lifting Lug Eye Bolts

Eye bolts are recommended when weight and/or accessibility is a factor in lifting safety heads.

Baffle Plate

When a safety head is free-vented to atmosphere, a baffle plate may be considered to disperse overpressure and absorb recoil.
