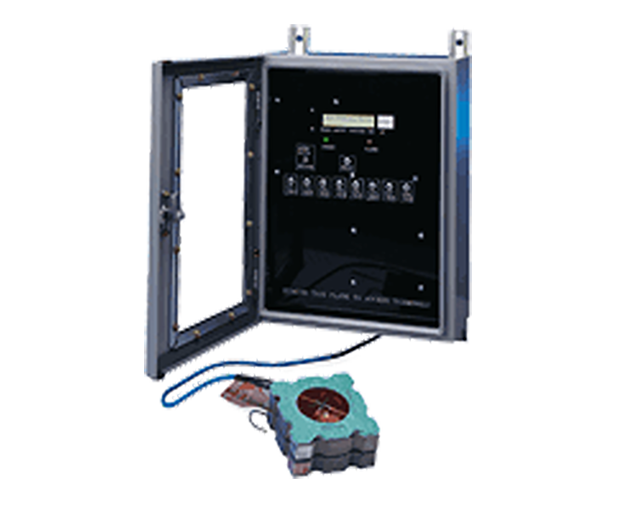

Detec-Saf Alarm System

Performance Features

  • Immediate identification of when and where a rupture disk has burst to relieve an over-pressure condition
  • Two styles of burst disk monitors available: 2-channels and 8-channels, which allow monitoring from 1 to 8 remote locations from the same unit.
  • The system provides centralized monitoring of all disks, including disks in inaccessible locations.
  • Standard cabinet is designed for surface mounting but other mounting and enclosures options may be specified.
  • Suitable for use in Class I and II, Division 1, Groups A, B, C, D, E, F and G hazardous locations when properly enclosed, installed and connected.
  • Designed within the guidelines established in U.L. Publication 913 for Intrinsic Safety and are

Request a Quote

  • Specifications
  • Disks Type
  • Heads & Holder
  • Sensors
  • Accessories
  • Documentation

Specifications

Input power 115/230 Vac, 50/60 HZ
Signal level to Burst AlertTM Sensor 5 Vdc @ 20 mA maximum
External output relays 10 amps @ 240 Vac maximum, resistive 5 amps @ 240 Vac maximum, inductive
Operating temperature -40° to 122°F (-40° to 50°C)
Cabinet Standard steel cabinet meets specifications for NEMA 2 enclosures. Consult factory for other types.
Dimensions BDM 1500 and 2000 7.13 x 5.87 x 8 inches
BDM 7500 and 8000 7.13 x 17.5 x 8 inches
Mounting Standard units are designed for surface mounting. Wall or panel mounting options are vailable.

Accessories

BS&B supplies many of the Accessories required to safely and conveniently install our overpressure relief devices and complementary products. Through our professional team and global network of sales engineers and procurement personnel, we are able to provide the highest quality accessory products to meet your installation requirements.

Saf-T-Change Quick Disk Replacement (QDR)

After activation, the replacement disk is quickly slid into place. Saving hours of lost production due to blown rupture disks.

Tell-Tale Assemblies & Excess Flow Valves/Gauges

A gauge tap in the outlet flange of the safety head may be considered when the safety head is installed in a vertical position.

Spare Safety Heads & Cap Screws

Jackscrews

When activated, the jackscrews effectively separate the flanges, providing adequate clearance to remove or insert a safety head and external gaskets.

Lifting Lug Eye Bolts

Eye bolts are recommended when weight and/or accessibility is a factor in lifting safety heads.

Baffle Plate

When a safety head is free-vented to atmosphere, a baffle plate may be considered to disperse overpressure and absorb recoil.

Product Literature

Burst Alert Sensors
Detec Saf Alarm System - Burst Disk Monitor
