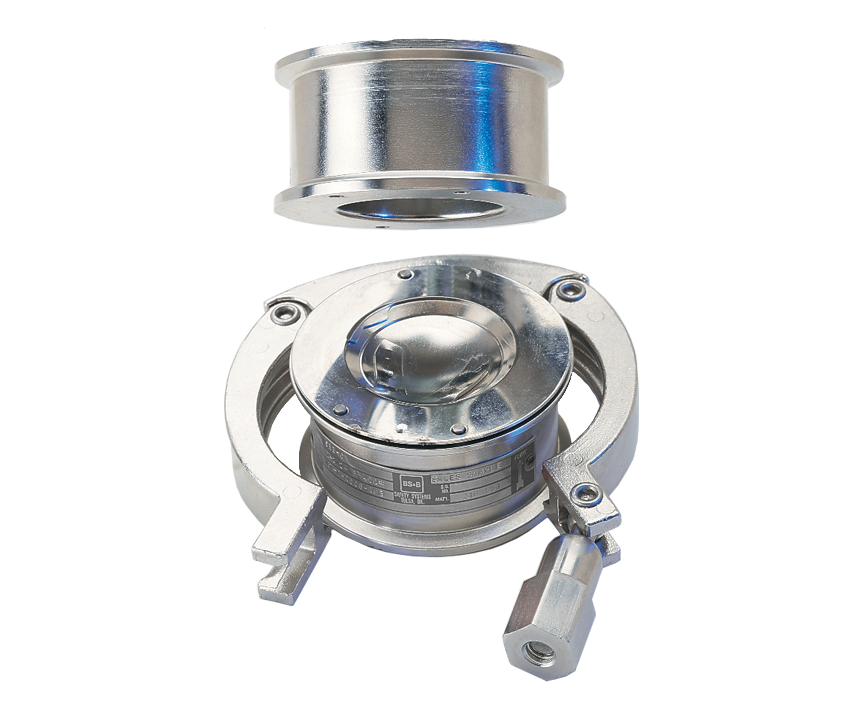

RLS-S/RLS-ST™ Disk Specifications Minimum/Maximum Pressure with Rating at 72° (22°C)
Note: Standard material 316 stainless steel. Other disk sizes, materials and burst pressures are available upon request - consult BS&B. FEP/PTFE liners are available on the process side of the disk in sizes from 2” (50mm) and above. Maximum temperature for 316ss is 750°F (399°C). Maximum temperature for FEP/PTFE is 500°F (260°C).
BS&B supplies many of the Accessories required to safely and conveniently install our overpressure relief devices and complementary products. Through our professional team and global network of sales engineers and procurement personnel, we are able to provide the highest quality accessory products to meet your installation requirements.
After activation, the replacement disk is quickly slid into place. Saving hours of lost production due to blown rupture disks.
A gauge tap in the outlet flange of the safety head may be considered when the safety head is installed in a vertical position.
When activated, the jackscrews effectively separate the flanges, providing adequate clearance to remove or insert a safety head and external gaskets.
Eye bolts are recommended when weight and/or accessibility is a factor in lifting safety heads.
When a safety head is free-vented to atmosphere, a baffle plate may be considered to disperse overpressure and absorb recoil.

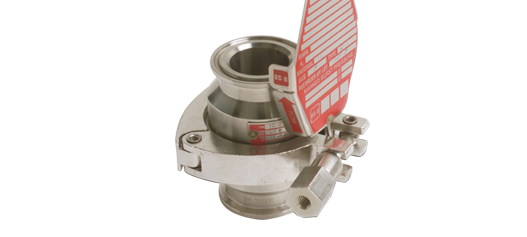

Our comprehensive range of sanitary Sales Brochure (bursting discs) and holders for use in sanitary/aseptic applications in the pharmaceutical, biotechnology and food processing industries
A range of sensors suitable for different rupture disk types used to provide immediate warning of a ruptured disk., #77-1003
